Evaluating diagnostic classification models

With Stan and measr

W. Jake Thompson, Ph.D.

Model evaluation

  • Absolute fit: How well does the model represent the observed data?

    • Model-level
    • Item-level
  • Relative fit: How do multiple models compare to each other?

  • Reliability: How consistent and accurate are the classifications?

Absolute model fit

Model-level absolute fit

  • Limited information indices based on parameter point estimates
  • Posterior predictive model checks (PPMCs)

Calculating limited information indices

fit_* functions are used for calculating absolute fit indices.

fit_m2(ecpe)
# A tibble: 1 × 8
     m2    df     pval  rmsea ci_lower ci_upper `90% CI`          srmsr
  <dbl> <int>    <dbl>  <dbl>    <dbl>    <dbl> <chr>             <dbl>
1  513.   325 1.33e-10 0.0141   0.0117   0.0163 [0.0117, 0.0163] 0.0319

add_fit() will add the fit index to the model object (and resave) to prevent unnecessary calculations in the future.

ecpe <- add_fit(ecpe, method = "m2")
measr_extract(ecpe, "m2")
# A tibble: 1 × 3
     m2    df     pval
  <dbl> <int>    <dbl>
1  513.   325 1.33e-10

Exercise 1

  • Open evaluation.Rmd and run the setup chunk.

  • Calculate the M2 statistic for the MDM LCDM model using add_fit().

  • Extract the M2 statistic. Does the model fit the data?

03:00

mdm_lcdm <- add_fit(mdm_lcdm, method = "m2")
measr_extract(mdm_lcdm, "m2")
# A tibble: 1 × 3
      m2    df  pval
   <dbl> <int> <dbl>
1 0.0306     1 0.861

PPMC: Raw score distribution

  • For each iteration, calculate the total number of respondents at each score point
  • Calculate the expected number of respondents at each score point
  • Calculate the observed number of respondents at each score point

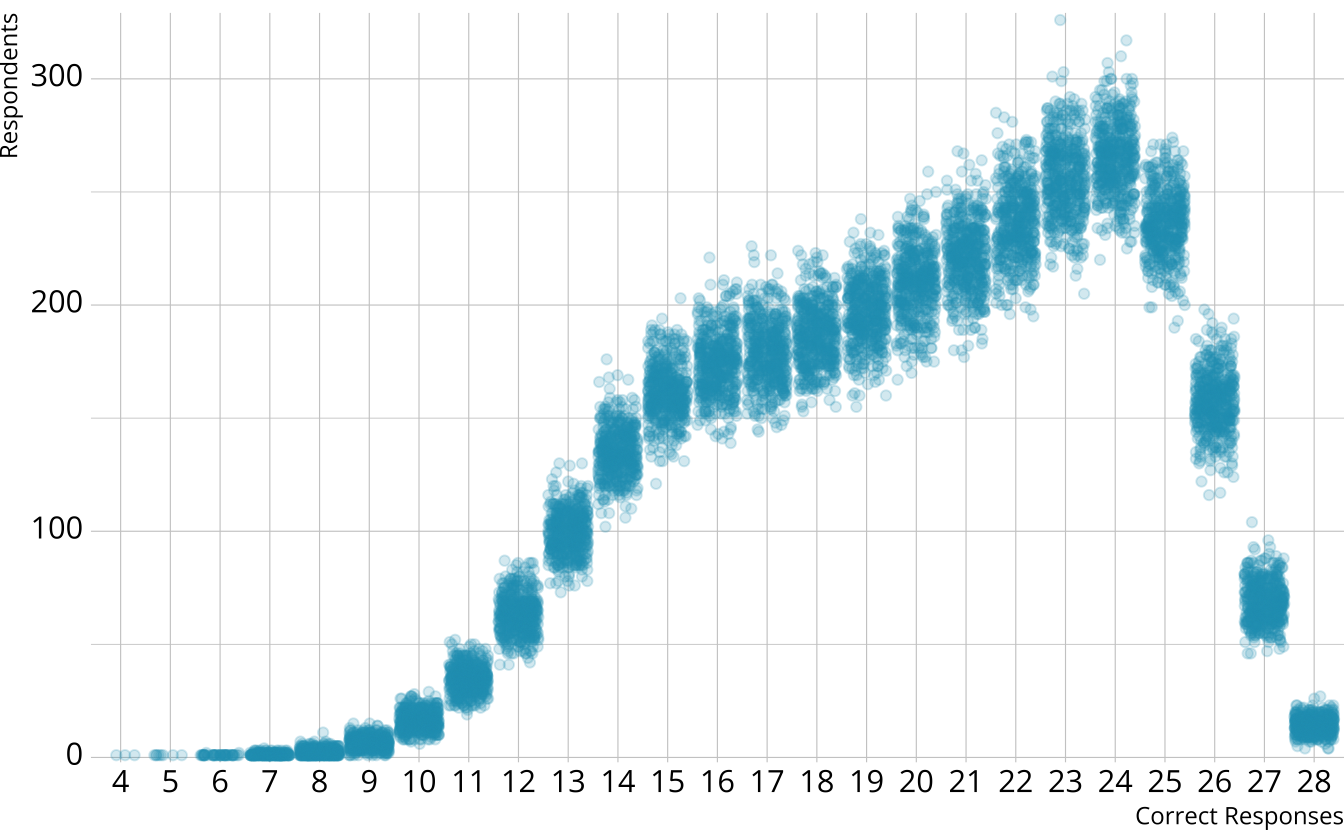

Scatter plot showing the number of respondents at each score point in each iteration.

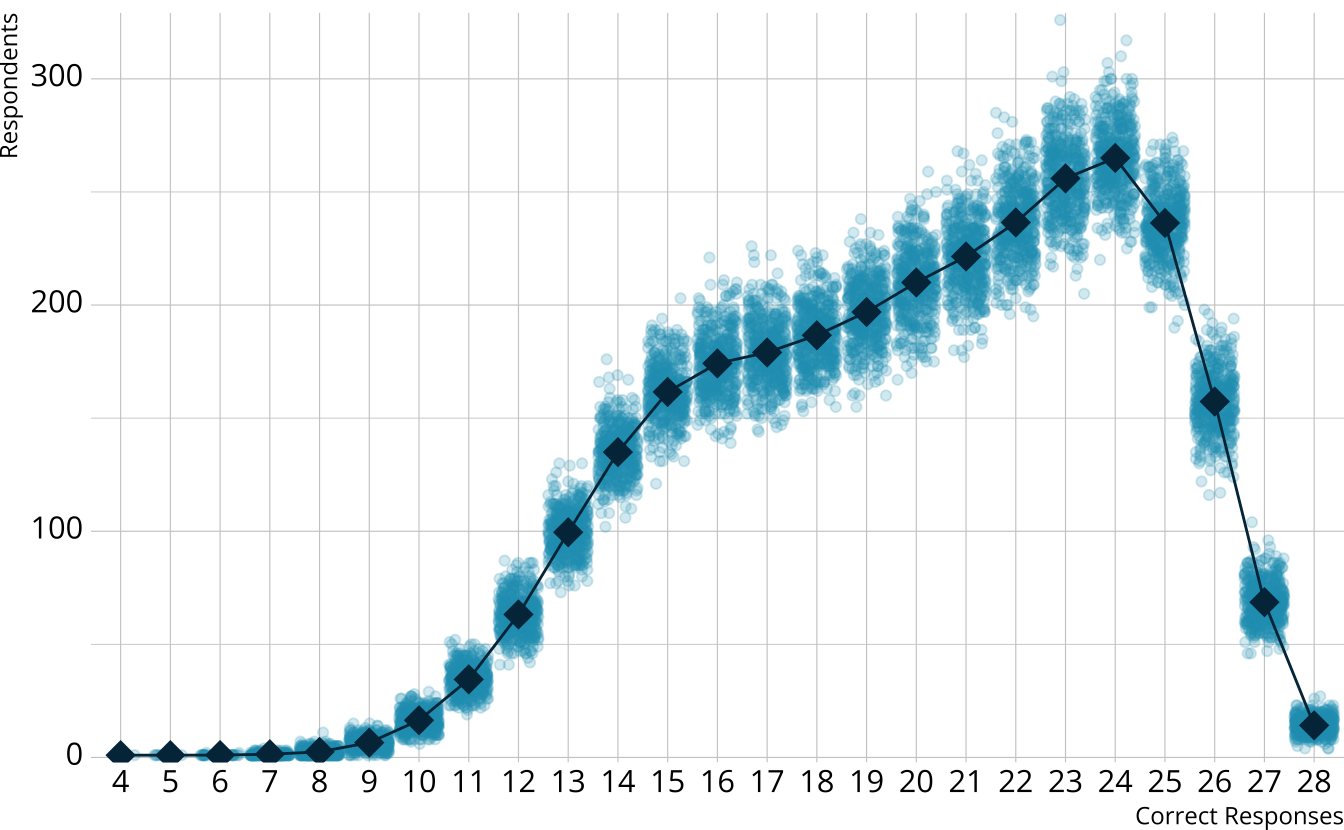

Scatter plot showing the number of respondents at each score point in each iteration with the average number of respondents overlayed.

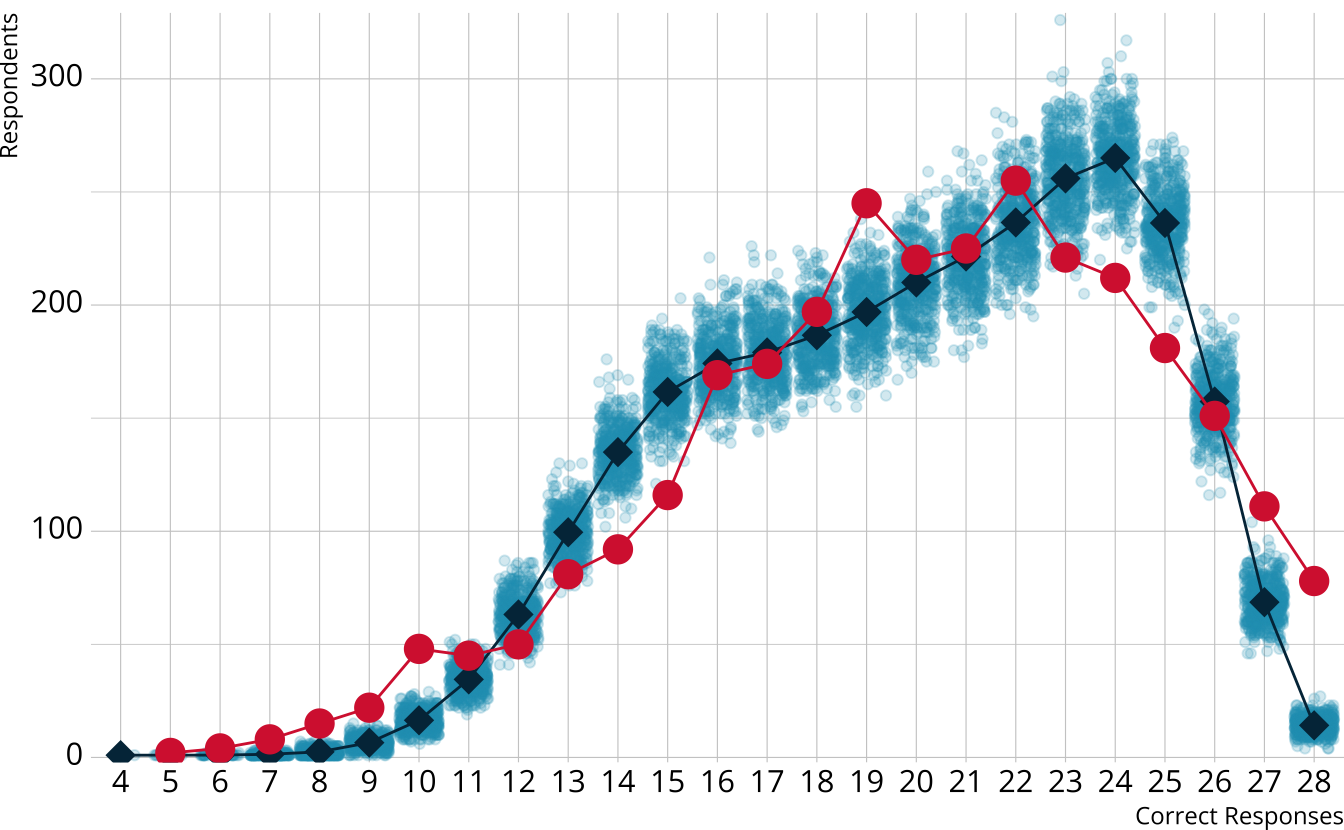

Scatter plot showing the number of respondents at each score point in each iteration with the average and observed number of respondents overlayed.

PPMC: \(\chi^2\)

  • Calculate a \(\chi^2\)-like statistic comparing the number of respondents at each score point in each iteration to the expectation
  • Calculate the \(\chi^2\) value comparing the observed data to the expectation

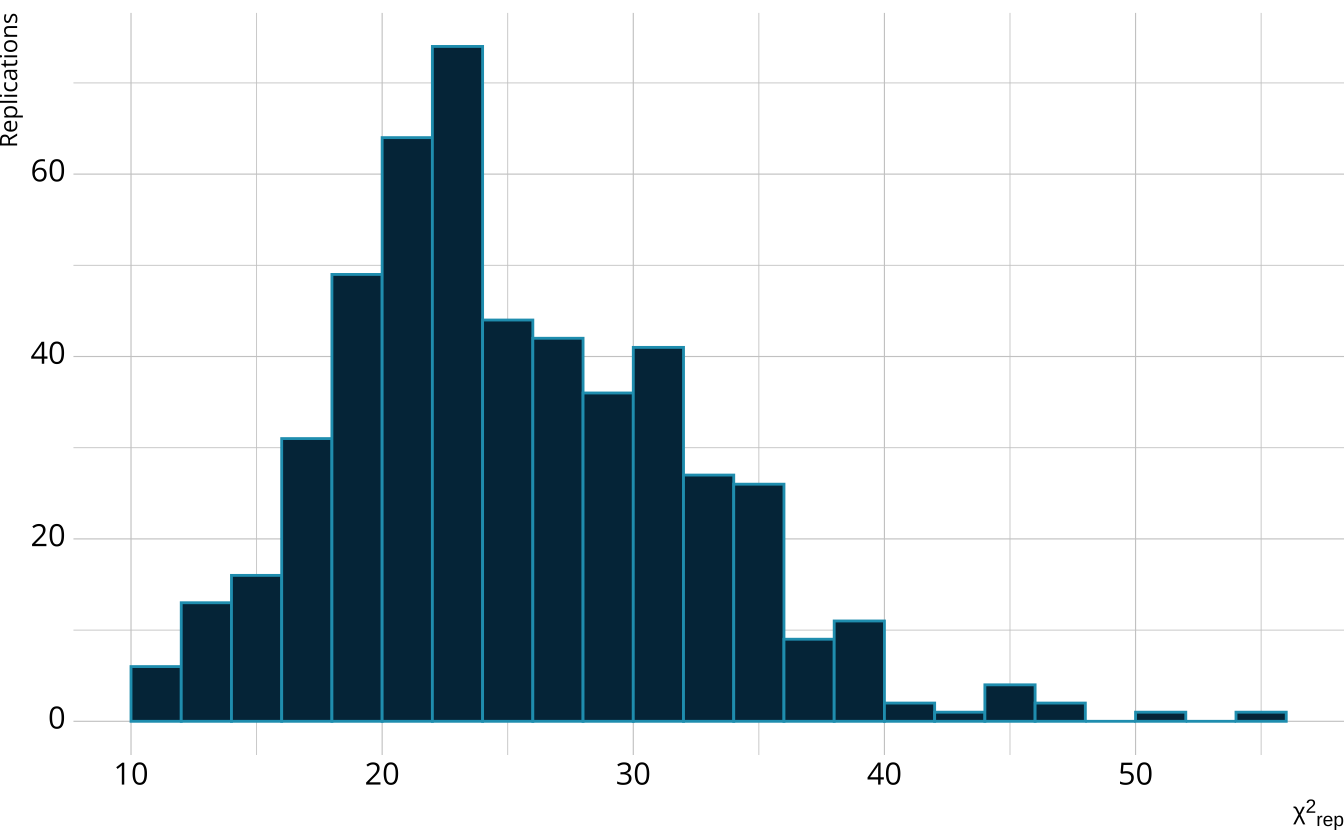

Histogram of the chi-square values from each iteration.

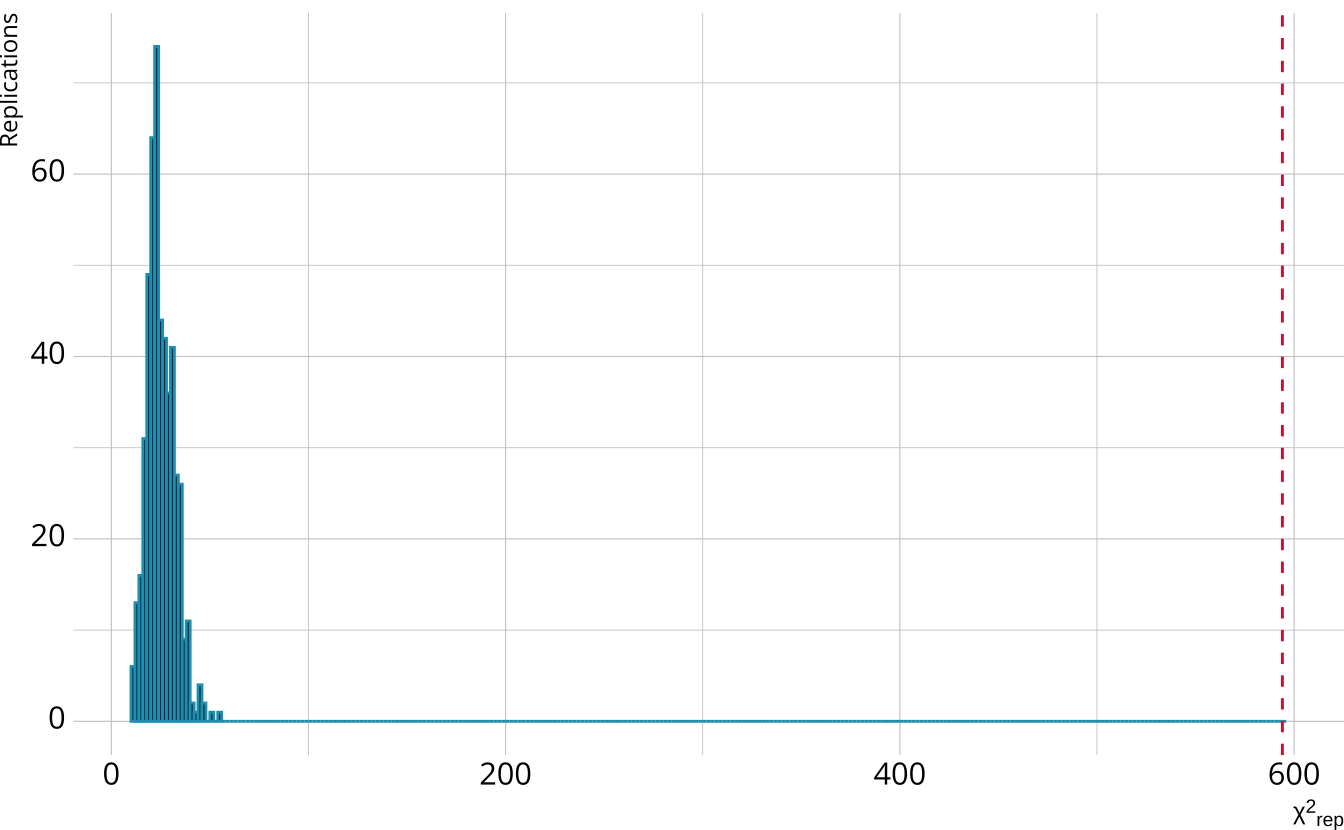

Histogram of the chi-square values from each iteration with a dashed vertical line indicating the value from the observed data.

PPMC: ppp

  • Calculate the proportion of iterations where the \(\chi^2\)-like statistic from replicated data set exceed the observed data statistic
    • Posterior predictive p-value (ppp)

PPMCs with measr

fit_ppmc(ecpe, model_fit = "raw_score", item_fit = NULL)
$model_fit
$model_fit$raw_score
# A tibble: 1 × 5
  obs_chisq ppmc_mean `2.5%` `97.5%`   ppp
      <dbl>     <dbl>  <dbl>   <dbl> <dbl>
1     1004.      28.2   12.2    56.4     0
ecpe <- add_fit(ecpe, method = "ppmc", model_fit = "raw_score", item_fit = NULL)
measr_extract(ecpe, "ppmc_raw_score")
# A tibble: 1 × 5
  obs_chisq ppmc_mean `2.5%` `97.5%`   ppp
      <dbl>     <dbl>  <dbl>   <dbl> <dbl>
1      905.      26.9   13.0    54.7     0

Exercise 2

  • Calculate the raw score PPMC for the MDM LCDM

  • Does the model fit the observed data?

04:00

mdm_lcdm <- add_fit(mdm_lcdm, method = "ppmc", item_fit = NULL)
measr_extract(mdm_lcdm, "ppmc_raw_score")
# A tibble: 1 × 5
  obs_chisq ppmc_mean `2.5%` `97.5%`   ppp
      <dbl>     <dbl>  <dbl>   <dbl> <dbl>
1      3.36      6.90  0.736    20.3 0.726

Item-level fit

  • Diagnose problems with model-level

  • Identify particular items that may not be performing as expected

  • Identify potential dimensionality issues

Item-level fit with measr

  • Currently support two-measures of item-level fit using PPMCs:
    • Conditional probability of each class providing a correct response (\(\pi\) matrix)
    • Item pair odds ratios

Calculating item-level fit

ecpe <- add_fit(ecpe, method = "ppmc",
                item_fit = c("conditional_prob", "odds_ratio"))

Extracting item-level fit

measr_extract(ecpe, "ppmc_conditional_prob")
# A tibble: 224 × 7
   item  class   obs_cond_pval ppmc_mean `2.5%` `97.5%`   ppp
   <fct> <chr>           <dbl>     <dbl>  <dbl>   <dbl> <dbl>
 1 E1    [0,0,0]         0.701     0.694  0.662   0.723 0.324
 2 E1    [1,0,0]         0.782     0.798  0.712   0.905 0.597
 3 E1    [0,1,0]         1         0.810  0.757   0.865 0
 4 E1    [0,0,1]         0.611     0.694  0.662   0.723 1
 5 E1    [1,1,0]         0.996     0.930  0.909   0.952 0
 6 E1    [1,0,1]         0.486     0.798  0.712   0.905 1
 7 E1    [0,1,1]         0.831     0.810  0.757   0.865 0.222
 8 E1    [1,1,1]         0.926     0.930  0.909   0.952 0.654
 9 E2    [0,0,0]         0.741     0.739  0.708   0.767 0.455
10 E2    [1,0,0]         0.835     0.739  0.708   0.767 0
# ℹ 214 more rows
measr_extract(ecpe, "ppmc_odds_ratio")
# A tibble: 378 × 7
   item_1 item_2 obs_or ppmc_mean `2.5%` `97.5%`    ppp
   <fct>  <fct>   <dbl>     <dbl>  <dbl>   <dbl>  <dbl>
 1 E1     E2       1.61      1.39   1.07    1.73 0.102
 2 E1     E3       1.42      1.49   1.21    1.80 0.666
 3 E1     E4       1.58      1.39   1.13    1.70 0.093
 4 E1     E5       1.68      1.48   1.09    1.93 0.164
 5 E1     E6       1.64      1.40   1.09    1.76 0.112
 6 E1     E7       1.99      1.70   1.37    2.07 0.0505
 7 E1     E8       1.54      1.55   1.16    2.03 0.503
 8 E1     E9       1.18      1.25   1.01    1.52 0.707
 9 E1     E10      1.82      1.59   1.28    1.96 0.108
10 E1     E11      1.61      1.64   1.32    2.01 0.566
# ℹ 368 more rows

Flagging item-level fit

measr_extract(ecpe, "ppmc_conditional_prob_flags")
# A tibble: 105 × 7
   item  class   obs_cond_pval ppmc_mean `2.5%` `97.5%`   ppp
   <fct> <chr>           <dbl>     <dbl>  <dbl>   <dbl> <dbl>
 1 E1    [0,1,0]         1         0.810  0.757   0.865 0
 2 E1    [0,0,1]         0.611     0.694  0.662   0.723 1
 3 E1    [1,1,0]         0.996     0.930  0.909   0.952 0
 4 E1    [1,0,1]         0.486     0.798  0.712   0.905 1
 5 E2    [1,0,0]         0.835     0.739  0.708   0.767 0
 6 E2    [0,1,0]         1         0.907  0.888   0.925 0
 7 E2    [0,0,1]         0.694     0.739  0.708   0.767 0.998
 8 E2    [1,1,0]         0.975     0.907  0.888   0.925 0
 9 E2    [1,0,1]         0.424     0.739  0.708   0.767 1
10 E3    [0,1,0]         0.365     0.414  0.379   0.448 0.997
# ℹ 95 more rows
measr_extract(ecpe, "ppmc_odds_ratio_flags")
# A tibble: 80 × 7
   item_1 item_2 obs_or ppmc_mean `2.5%` `97.5%`    ppp
   <fct>  <fct>   <dbl>     <dbl>  <dbl>   <dbl>  <dbl>
 1 E1     E13      1.80      1.45   1.15    1.79 0.0215
 2 E1     E17      2.02      1.40   1.05    1.82 0.005
 3 E1     E26      1.61      1.25   1.02    1.53 0.0075
 4 E1     E28      1.86      1.41   1.09    1.76 0.008
 5 E2     E4       1.73      1.36   1.09    1.67 0.0055
 6 E2     E14      1.64      1.24   1.01    1.52 0.0025
 7 E2     E15      1.92      1.45   1.07    1.89 0.021
 8 E3     E23      1.83      1.50   1.22    1.82 0.0205
 9 E3     E24      1.63      1.39   1.17    1.62 0.0205
10 E4     E5       2.81      2.09   1.58    2.67 0.012
# ℹ 70 more rows

Patterns of item-level misfit

measr_extract(ecpe, "ppmc_conditional_prob_flags") |>
  count(class, name = "flags") |>
  left_join(measr_extract(ecpe, "strc_param"), by = join_by(class)) |>
  arrange(desc(flags))
# A tibble: 8 × 3
  class   flags         estimate
  <chr>   <int>       <rvar[1d]>
1 [1,0,1]    21  0.0184 ± 0.0100
2 [0,1,0]    20  0.0164 ± 0.0109
3 [1,1,0]    19  0.0093 ± 0.0057
4 [1,0,0]    16  0.0118 ± 0.0063
5 [0,0,1]    14  0.1279 ± 0.0198
6 [0,1,1]     9  0.1730 ± 0.0203
7 [1,1,1]     4  0.3451 ± 0.0167
8 [0,0,0]     2  0.2981 ± 0.0165

Exercise 3

  • Calculate PPMCs for the conditional probabilities and odds ratios for the MDM model

  • What do the results tell us about the model?

05:00

mdm_lcdm <- add_fit(mdm_lcdm, method = "ppmc",
                    item_fit = c("conditional_prob", "odds_ratio"))

measr_extract(mdm_lcdm, "ppmc_conditional_prob_flags")
# A tibble: 0 × 7
# ℹ 7 variables: item <fct>, class <chr>, obs_cond_pval <dbl>, ppmc_mean <dbl>,
#   2.5% <dbl>, 97.5% <dbl>, ppp <dbl>

measr_extract(mdm_lcdm, "ppmc_odds_ratio_flags")
# A tibble: 0 × 7
# ℹ 7 variables: item_1 <fct>, item_2 <fct>, obs_or <dbl>, ppmc_mean <dbl>,
#   2.5% <dbl>, 97.5% <dbl>, ppp <dbl>

Relative model fit

Model comparisons

  • Doesn’t give us information whether or not a model fits the data, only compares competing models to each other
    • Should be evaluated in conjunction with absolute model fit
  • Implemented with the loo package

Relative fit with measr

ecpe <- add_criterion(ecpe, criterion = c("loo", "waic"))

measr_extract(ecpe, "loo")

Computed from 2000 by 2922 log-likelihood matrix

         Estimate    SE
elpd_loo -42817.0 226.1
p_loo        76.6   0.8
looic     85634.0 452.2
------
Monte Carlo SE of elpd_loo is 0.2.

All Pareto k estimates are good (k < 0.5).
See help('pareto-k-diagnostic') for details.

Comparing models

First, we need another model to compare

ecpe_dina <- measr_dcm(
  data = ecpe_data, qmatrix = ecpe_qmatrix,
  resp_id = "resp_id", item_id = "item_id",
  type = "dina",
  method = "mcmc", backend = "cmdstanr",
  iter_warmup = 1000, iter_sampling = 500,
  chains = 4, parallel_chains = 4,
  file = "fits/ecpe-dina"
)

ecpe_dina <- add_criterion(ecpe_dina, criterion = "loo")

loo_compare()

loo_compare(ecpe, ecpe_dina, criterion = "loo",
            model_names = c("lcdm", "dina"))
     elpd_diff se_diff
lcdm    0.0       0.0
dina -808.6      39.3
  • LCDM is the preferred model
    • Preferred does not imply “good”
    • Remember, the LCDM showed poor absolute fit
  • Difference is much larger than the standard error of the difference

Exercise 4

  • Estimate a DINA model for the MDM data

  • Add PSIS-LOO and WAIC criteria to both the LCDM and DINA models for the MDM data

  • Use loo_compare() to compare the LCDM and DINA models

    • What do the findings tell us?
    • Can you explain the results?
05:00

mdm_dina <- measr_dcm(
  data = mdm_data, qmatrix = mdm_qmatrix,
  resp_id = "respondent", item_id = "item",
  type = "dina",
  method = "mcmc", backend = "rstan",
  warmup = 1000, iter = 1500, chains = 2,
  file = "fits/mdm-dina"
)
mdm_lcdm <- add_criterion(mdm_lcdm, criterion = c("loo", "waic"))
mdm_dina <- add_criterion(mdm_dina, criterion = c("loo", "waic"))
loo_compare(mdm_lcdm, mdm_dina, criterion = "loo")
         elpd_diff se_diff
mdm_lcdm  0.0       0.0
mdm_dina -0.2       2.5

loo_compare(mdm_lcdm, mdm_dina, criterion = "waic")
         elpd_diff se_diff
mdm_lcdm  0.0       0.0
mdm_dina -0.2       2.5

Reliability

Reliability methods

  • Reporting reliability depends on how results are estimated and reported

  • Reliability for:

    • Profile-level classification
    • Attribute-level classification
    • Attribute-level probability of proficiency

Reliability with measr

reliability(ecpe)
$pattern_reliability
      p_a       p_c
0.7390218 0.6637287

$map_reliability
$map_reliability$accuracy
# A tibble: 3 × 8
  attribute         acc lambda_a kappa_a youden_a tetra_a  tp_a  tn_a
  <chr>           <dbl>    <dbl>   <dbl>    <dbl>   <dbl> <dbl> <dbl>
1 morphosyntactic 0.896    0.729   0.787    0.775   0.942 0.851 0.924
2 cohesive        0.852    0.675   0.704    0.699   0.892 0.877 0.822
3 lexical         0.916    0.750   0.610    0.802   0.959 0.947 0.855

$map_reliability$consistency
# A tibble: 3 × 10
  attribute       consist lambda_c kappa_c youden_c tetra_c  tp_c  tn_c gammak
  <chr>             <dbl>    <dbl>   <dbl>    <dbl>   <dbl> <dbl> <dbl>  <dbl>
1 morphosyntactic   0.834    0.557   0.685    0.646   0.853 0.778 0.868  0.852
2 cohesive          0.806    0.562   0.681    0.607   0.817 0.826 0.781  0.789
3 lexical           0.856    0.552   0.626    0.670   0.875 0.894 0.776  0.880
# ℹ 1 more variable: pc_prime <dbl>


$eap_reliability
# A tibble: 3 × 5
  attribute       rho_pf rho_bs rho_i rho_tb
  <chr>            <dbl>  <dbl> <dbl>  <dbl>
1 morphosyntactic  0.734  0.687 0.573  0.884
2 cohesive         0.728  0.575 0.506  0.785
3 lexical          0.758  0.730 0.587  0.915
ecpe <- add_reliability(ecpe)

Profile-level classification

measr_extract(ecpe, "class_prob")
# A tibble: 2,922 × 9
   resp_id `[0,0,0]` `[1,0,0]` `[0,1,0]` `[0,0,1]` `[1,1,0]` `[1,0,1]` `[0,1,1]`
   <fct>       <dbl>     <dbl>     <dbl>     <dbl>     <dbl>     <dbl>     <dbl>
 1 1         7.70e-6   9.83e-5   5.11e-7  0.00131  0.0000875  0.0436     0.00208
 2 2         5.85e-6   7.43e-5   2.00e-7  0.00306  0.0000344  0.0974     0.00196
 3 3         5.63e-6   1.67e-5   1.73e-6  0.00211  0.0000701  0.00970    0.0154
 4 4         3.21e-7   4.06e-6   9.79e-8  0.000296 0.0000167  0.00985    0.00215
 5 5         1.17e-3   8.30e-3   3.57e-4  0.00127  0.0353     0.00933    0.00921
 6 6         2.97e-6   1.59e-5   9.08e-7  0.000912 0.0000651  0.00980    0.00663
 7 7         2.97e-6   1.59e-5   9.08e-7  0.000912 0.0000651  0.00980    0.00663
 8 8         3.73e-2   8.52e-5   1.34e-3  0.518    0.0000259  0.000586   0.439
 9 9         6.55e-5   2.02e-4   2.00e-5  0.00657  0.000921   0.00933    0.0479
10 10        4.05e-1   4.15e-1   3.58e-3  0.0379   0.0611     0.0180     0.00780
# ℹ 2,912 more rows
# ℹ 1 more variable: `[1,1,1]` <dbl>
measr_extract(ecpe, "class_prob") |>
  pivot_longer(-resp_id,
               names_to = "profile",
               values_to = "prob") |>
  slice_max(order_by = prob,
            by = resp_id)
# A tibble: 2,922 × 3
   resp_id profile  prob
   <fct>   <chr>   <dbl>
 1 1       [1,1,1] 0.953
 2 2       [1,1,1] 0.897
 3 3       [1,1,1] 0.973
 4 4       [1,1,1] 0.988
 5 5       [1,1,1] 0.935
 6 6       [1,1,1] 0.983
 7 7       [1,1,1] 0.983
 8 8       [0,0,1] 0.518
 9 9       [1,1,1] 0.935
10 10      [1,0,0] 0.415
# ℹ 2,912 more rows
measr_extract(ecpe, "pattern_reliability")
# A tibble: 1 × 2
  accuracy consistency
     <dbl>       <dbl>
1    0.739       0.664
  • Estimating classification consistency and accuracy for cognitive diagnostic assessment (Cui et al., 2012)

Attribute-level classification

measr_extract(ecpe, "attribute_prob")
# A tibble: 2,922 × 4
   resp_id morphosyntactic cohesive lexical
   <fct>             <dbl>    <dbl>   <dbl>
 1 1               0.997      0.955   1.00
 2 2               0.995      0.899   1.00
 3 3               0.983      0.988   1.00
 4 4               0.998      0.990   1.00
 5 5               0.988      0.980   0.955
 6 6               0.992      0.989   1.00
 7 7               0.992      0.989   1.00
 8 8               0.00436    0.444   0.961
 9 9               0.945      0.984   0.999
10 10              0.545      0.123   0.115
# ℹ 2,912 more rows
measr_extract(ecpe, "attribute_prob") |>
  mutate(
    across(
      where(is.double),
      ~case_when(.x > 0.5 ~ 1L,
                 TRUE ~ 0L)
    )
  )
# A tibble: 2,922 × 4
   resp_id morphosyntactic cohesive lexical
   <fct>             <int>    <int>   <int>
 1 1                     1        1       1
 2 2                     1        1       1
 3 3                     1        1       1
 4 4                     1        1       1
 5 5                     1        1       1
 6 6                     1        1       1
 7 7                     1        1       1
 8 8                     0        0       1
 9 9                     1        1       1
10 10                    1        0       0
# ℹ 2,912 more rows
measr_extract(ecpe, "classification_reliability")
# A tibble: 3 × 3
  attribute       accuracy consistency
  <chr>              <dbl>       <dbl>
1 morphosyntactic    0.896       0.834
2 cohesive           0.852       0.806
3 lexical            0.916       0.856
  • Measures of agreement to assess attribute-level classification accuracy and consistency for cognitive diagnostic assessments (Johnson & Sinharay, 2018)

Attribute-level probabilities

measr_extract(ecpe, "attribute_prob")
# A tibble: 2,922 × 4
   resp_id morphosyntactic cohesive lexical
   <fct>             <dbl>    <dbl>   <dbl>
 1 1               0.997      0.955   1.00
 2 2               0.995      0.899   1.00
 3 3               0.983      0.988   1.00
 4 4               0.998      0.990   1.00
 5 5               0.988      0.980   0.955
 6 6               0.992      0.989   1.00
 7 7               0.992      0.989   1.00
 8 8               0.00436    0.444   0.961
 9 9               0.945      0.984   0.999
10 10              0.545      0.123   0.115
# ℹ 2,912 more rows
measr_extract(ecpe, "probability_reliability")
# A tibble: 3 × 2
  attribute       informational
  <chr>                   <dbl>
1 morphosyntactic         0.573
2 cohesive                0.506
3 lexical                 0.587
  • The reliability of the posterior probability of skill attainment in diagnostic classification models (Johnson & Sinharay, 2020)

Exercise 5

  • Add reliability information to the MDM LCDM and DINA models

  • Examine the attribute classification indices for both models

04:00

mdm_lcdm <- add_reliability(mdm_lcdm)
mdm_dina <- add_reliability(mdm_dina)
measr_extract(mdm_lcdm, "classification_reliability")
# A tibble: 1 × 3
  attribute      accuracy consistency
  <chr>             <dbl>       <dbl>
1 multiplication    0.898       0.819

measr_extract(mdm_dina, "classification_reliability")
# A tibble: 1 × 3
  attribute      accuracy consistency
  <chr>             <dbl>       <dbl>
1 multiplication    0.905       0.831

Evaluating diagnostic classification models

With Stan and measr
